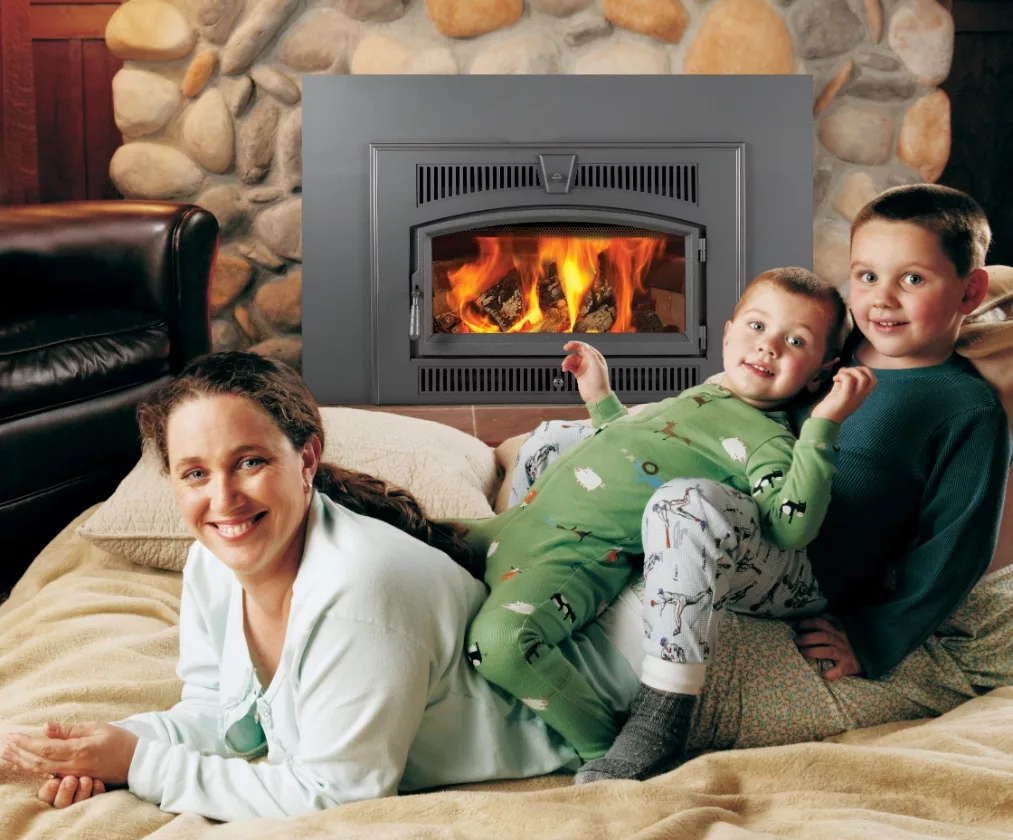

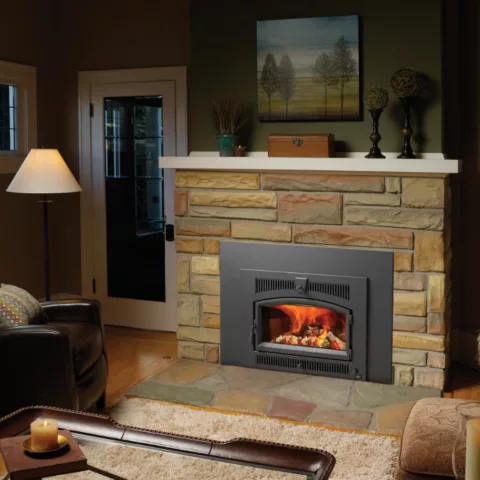

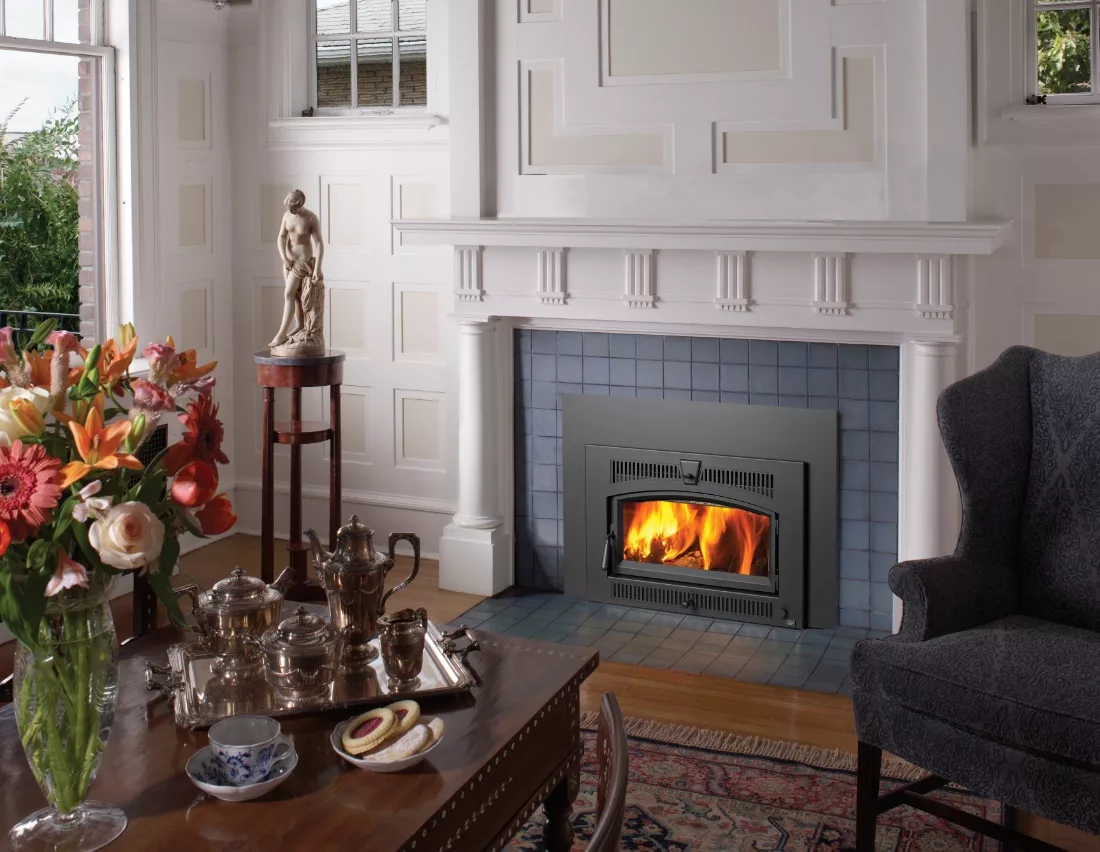

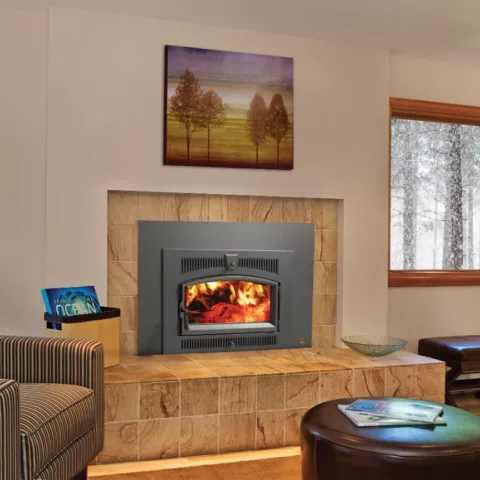

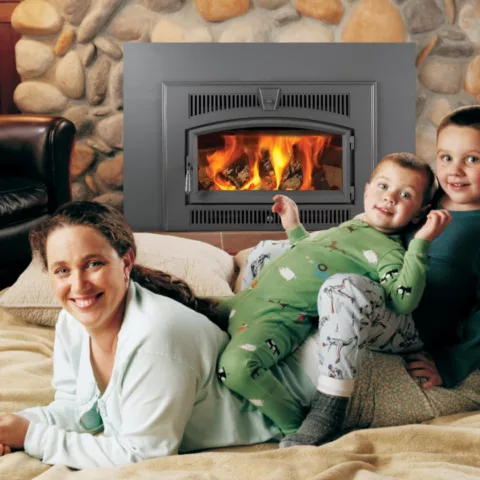

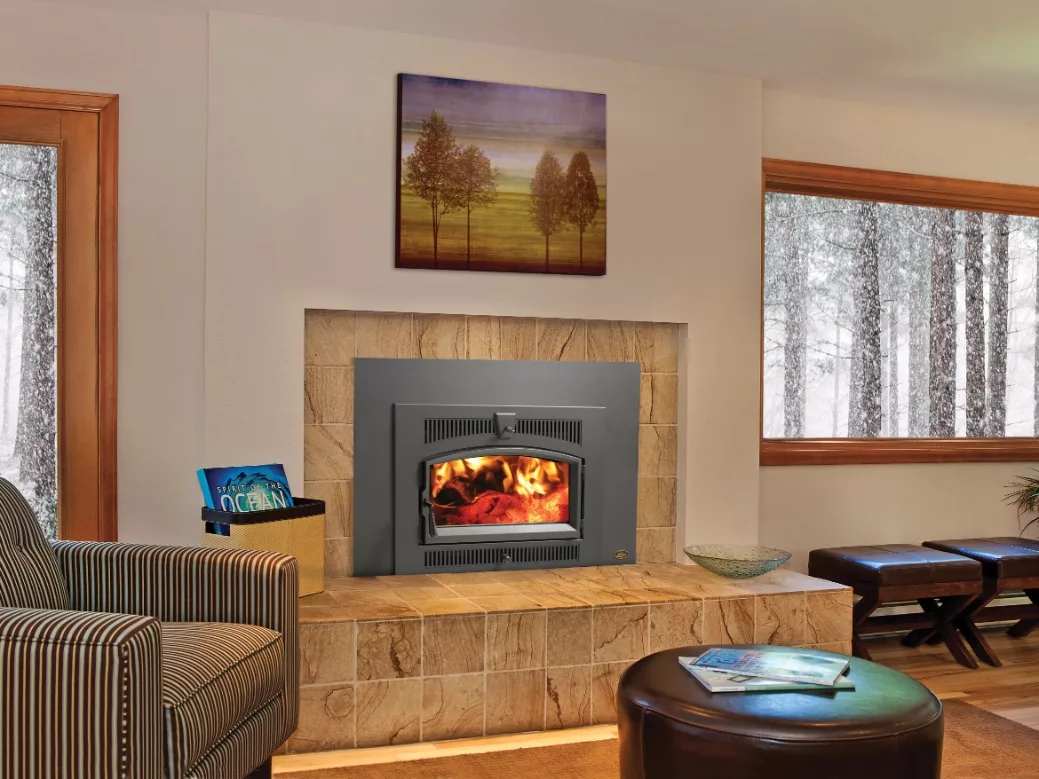

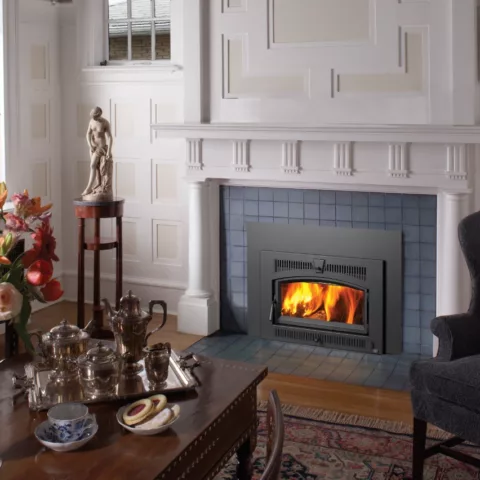

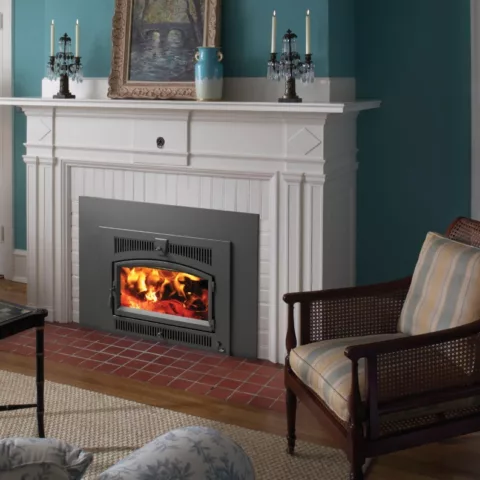

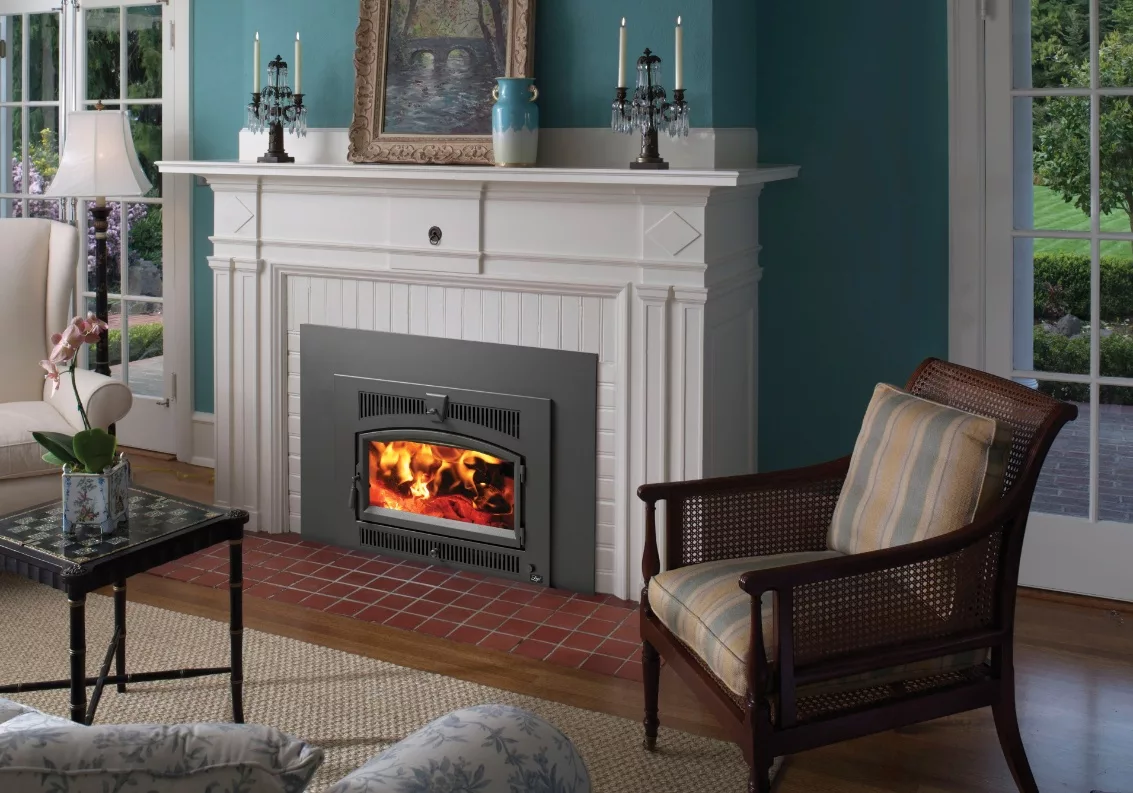

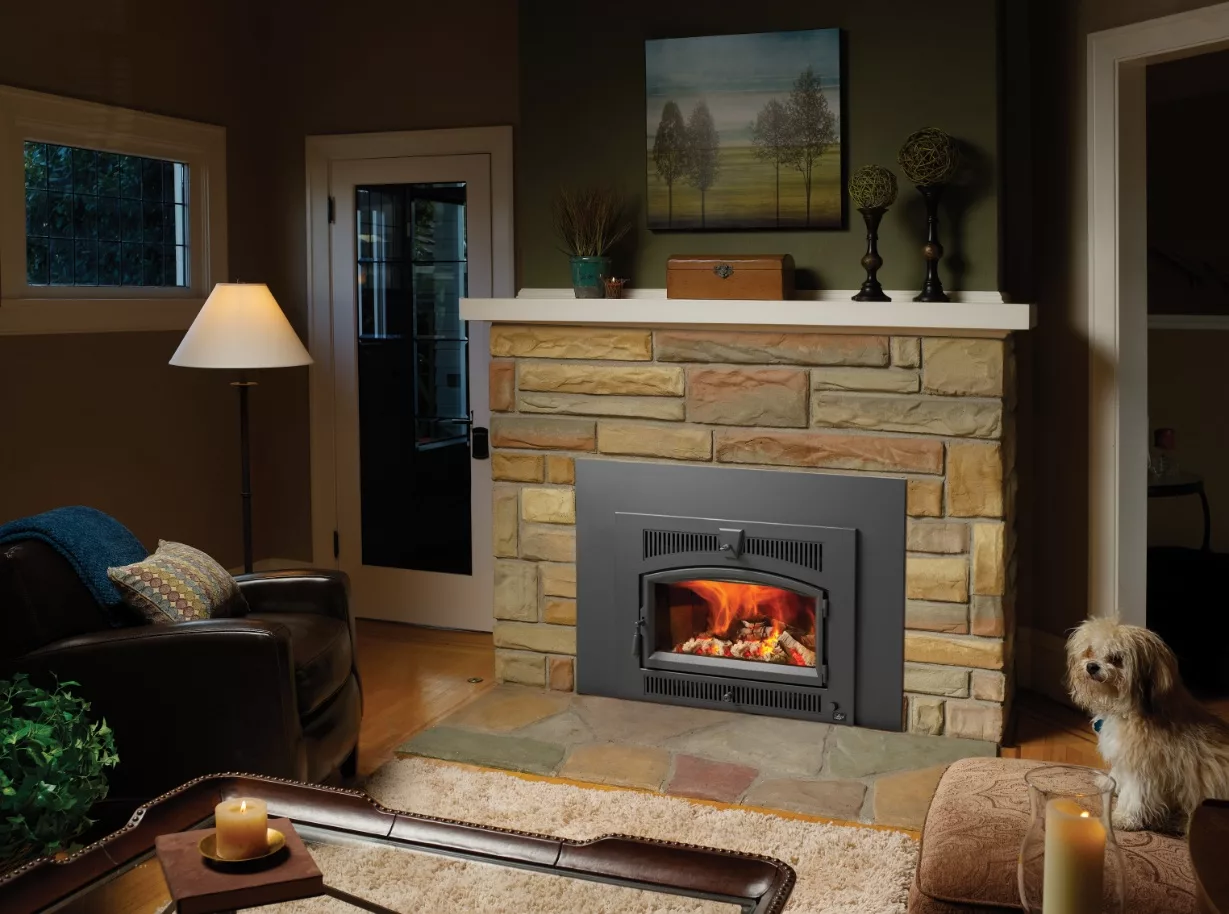

Enjoy higher efficiency and lower heating bills with the Medium Flush Wood Hybrid-Fyre Arch fireplace insert. The classic architecture and large viewing area of the single door are complementary to most décor. The Medium Flush Wood features a three-sided convection chamber, a 6” seamless flue collar and a kiln-fired refractory firebrick interior, making this unit very high in quality with exceptional heat transfer. This insert has a high BTU output providing up to 73,000 BTUs distributed by a 180 CFM convection fan that can circulate heat up to 2,000 square feet. Its advanced Hybrid-Fyre technology provides clean fires that burn longer and more efficiently, with less wood and burn times up to 10 hours. Available with Arched door or with cast iron Cape Cod face & panels.
Specifications
- Emissions: 1.74 Grams Per Hour (CORD WOOD)
- Heating Capacity:** 1,200 to 2,000 Square Feet
- Heat Output: Cord Wood – 73,300 BTUs Per Hour
- Maximum Burn Time: Up to 10 Hours
- Firebox Size: 2.2 Cubic Feet
- Maximum Log Size: 24”
- Weight: 450 Pounds
- Construction: 5/16” to 1/4” Steel Plate
- Efficiency:* HHV overall Heating Efficiency of 76%
- Glass Viewing Area: 22-5/8” W x 10” H
Specifications
- Heating Capacity: 1,200 to 2,000 Sq. Feet
- Heat Output: Up to 73,300
- Maximum Burn Time: Up to 10 Hours
- Efficiency: Up to 76.4%
- Firebox Size: 2.2 Cubic Feet
- Maximum Log Size: 24"
- Emissions: 1.7 Grams Per Hour (Cord Wood)
- Fan: Standard
- Weight: 450 Lbs.
- Construction: 5/16" & 1/4" Heavy Gauge Plate Steel
