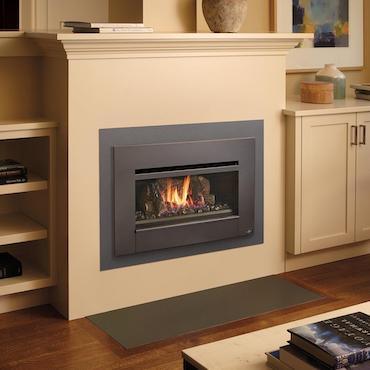

The Radiant Plus Small gas fireplace insert is a compact sized unit that is engineered to fit where most inserts can’t, making it the perfect choice for those small metal (zero clearance) and masonry fireplaces. The Radiant Plus Small is designed to provide comforting radiant heat plus natural convection, delivering optimum warmth to apartments or living spaces up to 950 square feet. Despite its compact firebox size, this insert still features a beautiful viewing area and fire display.
The Dancing-Fyre burning and Classic Log Set mimic a real wood-burning fire, right down to the flame pattern and highly detailed logs and ember bed. A variety of face styles and the ability to custom fit panels to each unique fireplace give this insert unlimited design potential.
The Radiant Plus Medium gas fireplace insert is available in two models:
- Millivolt: This Millivolt (MV) model features a Continuous Pilot system where the pilot flame stays lit at all times. This model is a great choice for anyone who desires a simple heat source that does not require power for installation and operation.
- GreenSmart Basic: The GreenSmart® Basic (GSB) model is an excellent energy-efficient choice. This model conserves fuel with a GreenSmart® pilot system that automatically lights the fireplace when heat is called for, and turns off the fireplace when no heat is needed.
Radiant Plus
The Radiant Plus gas fireplace inserts are engineered to install into your existing fireplace and designed to provide comforting RADIANT heat PLUS Natural Convection, delivering optimum warmth throughout your home.
RADIANT heat is the cozy, satisfying warmth you can actually feel from any source of heat, such as sitting in front of a campfire or soaking up the rays of the sun. NATURAL CONVECTION occurs as room air in the convection chamber is heated. This heated air rises, drawing cooler room air into the chamber, which in turn heats up and circulates around the firebox continuously.
With the Radiant Plus, you get MORE HEAT FOR LESS MONEY; that’s more features and benefits than any other value-priced gas insert available, making it both a beautiful and economical way to heat your home!
Specifications
- Heating Capacity : Up to 950 Square Feet
- Minimum BTU Input: 9,000 (NG/LP) BTU/HR
- Maximum BTU Input: 18,000 (NG/LP) BTU/HR
- Steady State Efficiency (High): MV Model Up to: 87.6% (NG), 89.7% (LP) GSB2 Model Up to: 87.6% (NG), 89.6% (LP)
- P4 Canadian Efficiency: MV Model Up to: 73.85% (NG), 75.60% (LP) GSB2 Model Up to: 75.15% (NG), 76.71% (LP)

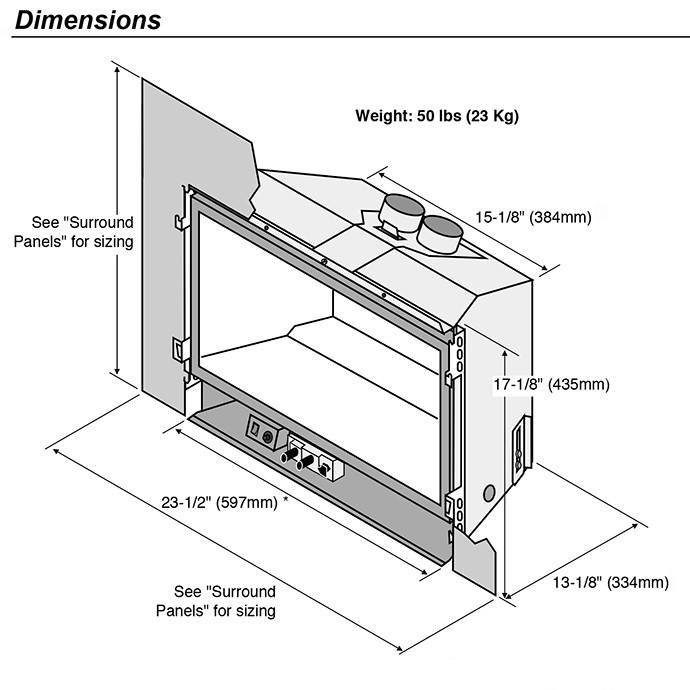

- Glass Area: 21-5/8" W x 10-1/4" H
